Features
- Single Color, RGB, UV, IR, SWIR, Multispectral
- High uniformity and brightness
- Integrated smart driver with continuous 24VDC input, 0-10V dimming capability, and pulse-follow strobe with 8x overdrive
- 25-mm, low profile, standard extruded frame provides a compact and flexible mounting solution
- Industry standard 5-pin, M12, connection port
Applications:
- Character recognition
- Detection of direct part marked 2D codes
- Inspection of electronic components
- Inspection of PCB’s
About the TX Ring Light
The latest edition to the Metaphase TX Series of products comes in the form of an ultra-compact, yet extremely flexible, ring light. These lights are designed with the same standard T-slot mounting hardware found on all TX series products and provide three main port sizes to choose from over two frame sizes. The TXRL series contains a bright and highly uniform array of LEDs driven by state-of-the-art driver technology delivering instant start-up and flicker free operation that can be used both in DC continuous mode, or with 8x pulse-follow strobe capability. All options are built to be powered by an industry standard 24VDC supply!

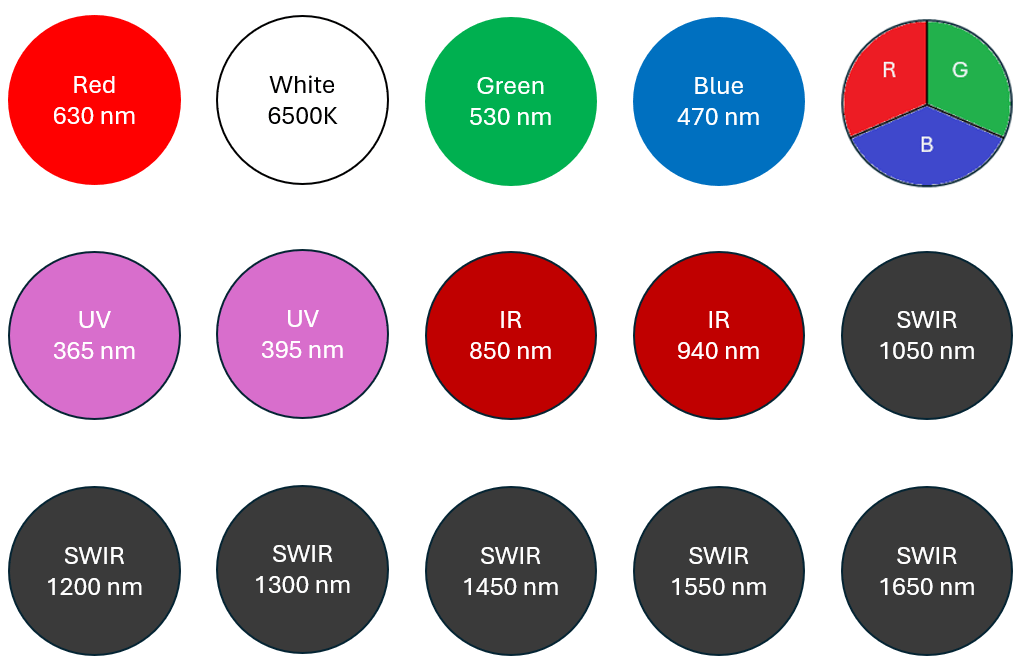

Available Wavelengths
Ordering Information
| FAMILY | MODEL | - | FRAME | - | COLOR | - | LENS | - | DIFFUSER | - | CONNECTOR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TXRL | XX | XXXX | XXXXX | XXX | XX | XXX | |||||
| TXRL | 1B - 34 mm port size, continuous with dimming 1C - 34 mm port size, continuous w/ pulse follow strobe 2B- 47 mm port size, continuous w/ dimming 2C - 47 mm port size, continuous w/ pulse follow strobe 3B - 72 mm port size, continuous w/ dimming 3C - 72 mm port size, continuous w/ pulse follow strobe | 0404 0606 150mm x 150mm Active Area | W (White 6500K) | L12 (full angle)
| CC00 - Clear Cover *Other Diffusers AND Polarization Available Upon Request | M12
|
