TX Flat Dome
- Application Type: Backlighting, diffuse lighting, dome lighting
- Intensity: 73,000 Lux (263W/m2)
- Wavelength: R, G, B, W, RGB, RGBW, IR850, IR940 (Choose up to 4 wavelengths, or 2 if using IR940)
- Control: New, advanced microprocessor that allows for DC continuous mode WITH continuous pulse-follow strobe all-in-one all built-in
- Mounting: 4-side T-slot mounting system with 180 degree adjustable T-slot L-Brackets
- Footprint: Low-profile housing with 10mm bezel
- Features: Multiple center hole sizes, ability to have multiple camera holes on one light
- Ask us for Quick Ship Options

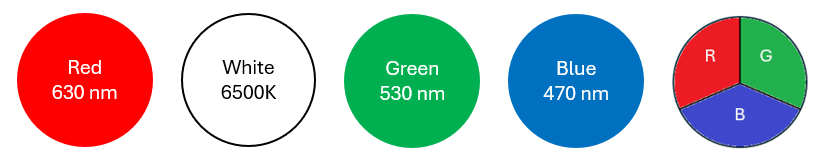

Available Wavelengths
Ordering Information
| FAMILY | MODEL | - | ACTIVE AREA (1 unit = 25mm) | - | WAVELENGTH | - | DRIVER | - | POLARIZER |
|---|---|---|---|---|---|---|---|---|---|
| TXFD TXCFD (collimated) | XX | XXXX | XXXXXX | X | XXX | ||||
| TXFD TXCFD (collimated) | 1A (ULC compatible), 32mm ID
| 0606 0608 0808 0810 1010 1012 1212 1214 1414 1416 1616 | W (White 5700K) R (Red 630nm) G (Green 530nm) B (Blue 470nm) RGB (630nm, 520nm, 470nm) RGBW IR850 (IR850) RGBIR IR940 | U for ULC-compatible (1A) Blank for all other versions | Blank if no polarizer P0* P90* |
